Shocker board query ..

[MINTY_71]

I have shocker board that I'm have trouble
Identifying .. It came from a dynasty sft shocker .
At first I was told it was a standard sft/nerve board .
But after closer inspection I've discoverd it is not .
I looked on you tube on standard sft board adjustments .
But the operating procedure on this board isn't the same .
It has two lights that flicker when you press the up / down dwell
Setting buttons.
I thought it was a standard nerve board after being told that so went to make
Adjustments, but ended up making adjustments incorrectly ..
I have since put another board in the shocker, that is a standard sft nerve board.
And just adjusted the dwell ..

This other board was working ok .. But I just wanted to see of I could make adjustments
Myself without issues.. Obviously I didn't and it all went wrong .
Does anyone know how I could reset this board back to its original settings ?

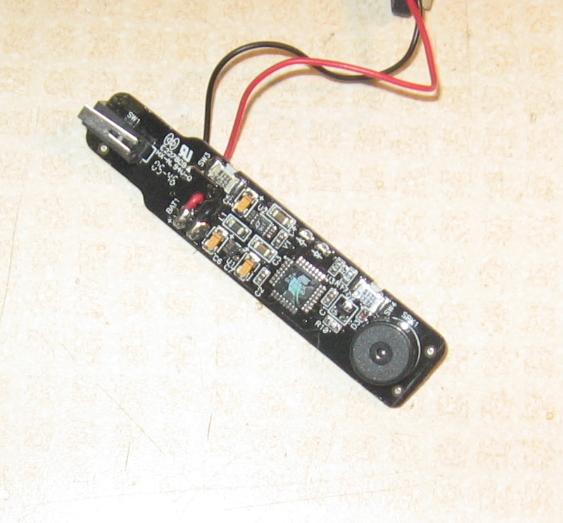

And does anyone have a idea what type of board this is.
It's black unlike the one I've replaced it with.
It does have a few letters marked on it , but that means
Diddly squat to me ..lol.
All I know it has two lights that flicker when you press the up/down
Buttons ..

Any help would be greatly appreciated ..
Thanks guys..



[tricky m]

Post a picture up. Might help identify it. cheyenne might be able to help.



[MINTY_71]

I can do .. But not at home at the moment ..
Will put up a picture in the morning ..

Thanks .



[Narkadox]

Could possibly be a Blackheart Board? They came stock in certian aftermarket Shockers if I recal.

If not there's a list of Shocker boards (with pictures ) you can compare it to here.

http://www.zdspb.com/tech/mguide/shockersft/parts_frame_lowerboard.html



[MINTY_71]

That's it! I reconise those letters in top left corner..
Would disconnecting it totally from the gun reset it settings?

Cheers bud!



[Narkadox]

No worries dude . I've never used a Shocker Blackheart board myself, but if it's like the Ion board, you hold the trigger down and keep it held whilst you turn it on. Keep holding it until the LED flashes white.

Manual's here BTW. http://www.p8ntbox.com/manuels/Blackheart.pdf



[MINTY_71]

Yeah cheers for that ..
I will give it a go
Thanks for your help mate.
Really appreceate .



[MINTY_71]

Board won't reset.. ????

Any help guys ..would be great. And also gun wouldn't fire with the old board. Air was going I ok, just pulled the trigger and it was making. Soft puffing nose.. Looks like the hole I'm in with problems with this gun is getting deeper!



[MINTY_71]

Ok just tried it again.. And air is just comming out the front end where barrel would screw in. And bolt is not moving at all..
I've pretty messed up here..
Would be willing to send this off to someone who could take a look at it for
Me and hopefully sort it out.. I'd even pay the for their trouble..
Because at the moment , I don't have time to do it.. And it needs someone with a bit more knowledge of shockers.

Hope someone can help..



[cheyenne]

put pic up m8
